CNC Router Machine 1212 CNC for Wood Made with Cast Iron CNC Table

Product Description



Cnc Router Machine 1212 CNC for Wood Made with Cast Iron CNC TableProduct Description

Product Description

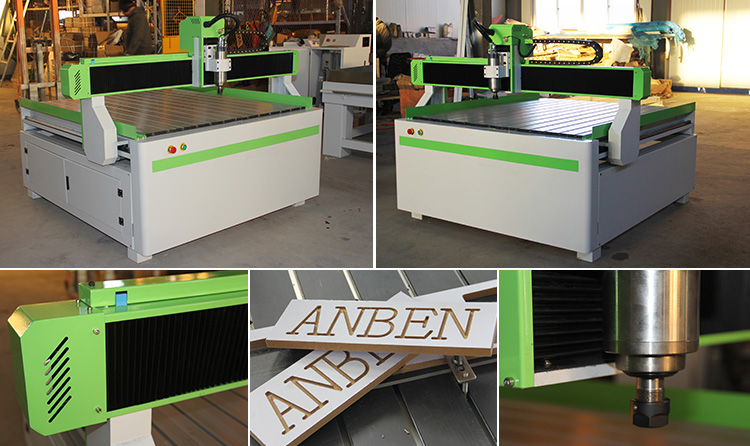

New design external appearance with high rigidity and fine performance.

 CNC Router Machine 1212 CNC for Wood Made with Cast Iron CNC Table



 2.2KW water cooling spindle, 24000rpm & 2.2KW Fuling inverter, strong and powerful.

CNC Router Machine 1212 CNC for Wood Made with Cast Iron CNC Table

Taiwan PMI linear guide with high rigidity, high positioning accuracy, high repeatability, low noise and long lifetime.

CNC Router Machine 1212 CNC for Wood Made with Cast Iron CNC Table

Specification

Cnc Router Machine 1212 CNC for Wood Made with Cast Iron CNC Table

Model

AN6090

AN1212

AN1218

AN-Customize

Working area(X*Y*Z)

600*900*160mm

1200*1200*160mm

1200*1800*160mm

Customize

Table Surface

T-slot Table with PVC protection

Frame

Cast iron structure

X, Y Structure

Rack and Pinion Drive, Taiwan PMI linear guide rails

Z Structure

Taiwan TBI Ball Screw

Spindle Power

1.5KW / 2.2KW / 3KW

VFD Power

1.5KW / 2.2KW / 3.7KW

Operating System

Mach 3 control system / DSP control system

Drive Motors

Leadshine drive and stepper motors

Max. Rapid Travel Rate

15000mm/min

Max. Working Speed

12000mm/min

Cutting accuracy

±0.03/1000mm

Working Voltage

AC220V, 50Hz, 1PH (Option: 110V)

Command Language

G Code

Software Compatibility

Artcam / Power mill / Type 3 / UcanCam



CNC Router Machine 1212 CNC for Wood Made with Cast Iron CNC Table
Application

1.Mould: wood,wax, wood, gypsum,foams,wax

2. Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.

3. The wood products: voice box, game cabinets, computer tables, sewing machines table,instruments.
4.Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti bate board, epoxy resin, ABS, PP, PE and other carbon mixed compounds.
5. Decorate industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic and soft metals such as copper engraving and milling process.



CNC Router Machine 1212 CNC for Wood Made with Cast Iron CNC Table

Packaging & Shipping
CNC Router Machine 1212 CNC for Wood Made with Cast Iron CNC Table



CNC Router Machine 1212 CNC for Wood Made with Cast Iron CNC TableCNC Router Machine 1212 CNC for Wood Made with Cast Iron CNC Table

Standard Package: 1. Inner package: Covered with plastic film on the cnc machine.

                                2. Outside package: Standard marine export plywood case.

                                We can package according to your requests.
Delivery Detail: Shipped within 12 working days after payment.



Our Services

1.24 months quality guaranty, the machine with main parts (excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.

2. Lifetime maintenance free of charge.

3. Free training course at our plant.

4. We will provide the consumable parts at an agency price when you need replacement.

5. 24 hours on line service each day, free technical support.

6. Machine has been adjusted before delivery.

7. Our staff can be sent to your company to install or adjust if necessary.

Certifications

CNC Router Machine 1212 CNC for Wood Made with Cast Iron CNC Table

Company Information

Shandong Anben Machinery Co.,Ltd is a professional CNC Router manufacturer in China. Our main products include ATC CNC Router, Wood cnc router, stone cnc router, Metal Cnc Router, EPS CNC Router, 4 Axis CNC Router, 5 Axis CNC Router, Plasma Cutting Machine, Engraving Machine and so on. Our products have passed the CE, SGS, ISO9001 etc. Our cnc routers are widely used for advertising, woodworking, mould, stone, metal industry.



CNC Router Machine 1212 CNC for Wood Made with Cast Iron CNC Table



We have our own factory and R & D team. Factory covers an area of about 5,000 square meters, specializing in the production of various types of special-shaped machine.



CNC Router Machine 1212 CNC for Wood Made with Cast Iron CNC Table

FAQ

FAQS

1. How can I get the best machine?

You can tell us your working material, detail work by picture or video so that we can judge whether our machine can meet your need or not. Then we will recommend the most suitable model depends on our experience.

2. Do you have any manual of your machine ?

Yes , We will send the English manual of Machine, Controller and the Design software together with the machine.

3. Can you arrange the shipment?

Yes, we can , we can send the machine to your nearest port , we will arrange everything for you , and lead you step by step.

Contact us if you need more details on Cnc Router. We are ready to answer your questions on packaging, logistics, certification or any other aspects about 1212、Cnc For Wood. If these products fail to match your need, please contact us and we would like to provide relevant information.
