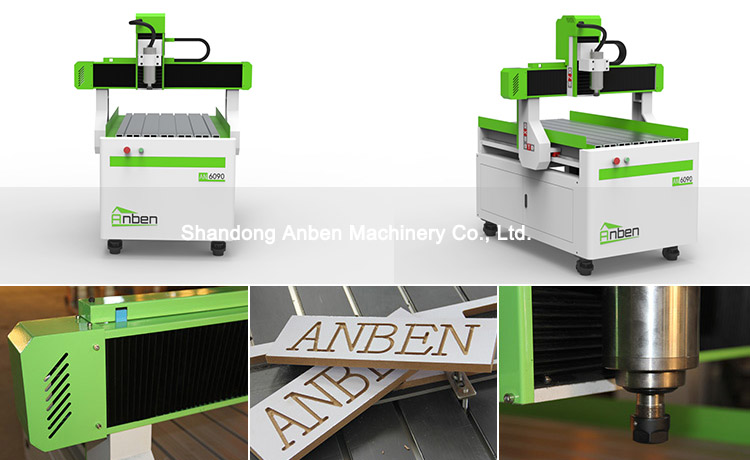

CNC Wood Router 6090 Small Machines for Home Business
Product Description
Description | Parameter | |||
Model | AN6090 | AN1212 | AN1218 | AN-Customize |
Working area(X*Y*Z) | 600*900*160mm | 1200*1200*160mm | 1200*1800*160mm | Customize |
Table Surface | T-slot Table with PVC protection | |||
Frame | Cast iron structure | |||
X, Y Structure | Rack and Pinion Drive, Taiwan PMI linear guide rails | |||
Z Structure | Taiwan TBI Ball Screw | |||
Spindle Power | 1.5KW / 2.2KW / 3KW | |||
VFD Power | 1.5KW / 2.2KW / 3.7KW | |||
Operating System | Mach 3 control system / DSP control system | |||
Drive Motors | Leadshine drive and stepper motors | |||
Max. Rapid Travel Rate | 15000mm/min | |||
Max. Working Speed | 12000mm/min | |||
Cutting accuracy | ±0.03/1000mm | |||
Working Voltage | AC220V, 50Hz, 1PH (Option: 110V) | |||
Command Language | G Code | |||
Software Compatibility | Artcam / Power mill / Type 3 / UcanCam |


1.Mould: wood,wax, wood, gypsum,foams,wax
2. Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.
3. The wood products: voice box, game cabinets, computer tables, sewing machines table,instruments.
4.Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti bate board, epoxy resin, ABS, PP, PE and other carbon mixed compounds.
5. Decorate industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic and soft metals such as copper engraving and milling process.

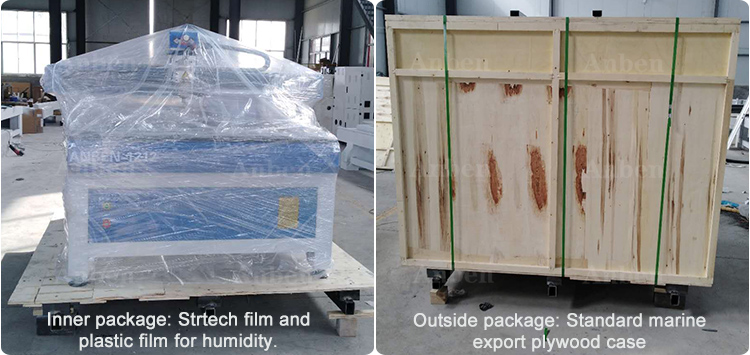

Standard Package: 1. Inner package: Covered with plastic film on the cnc machine.
2. Outside package: Standard marine export plywood case.
We can package according to your requests.
Delivery Detail: Shipped within 12 working days after payment.

1.24 months quality guaranty, the machine with main parts (excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.
2. Lifetime maintenance free of charge.
3. Free training course at our plant.
4. We will provide the consumable parts at an agency price when you need replacement.
5. 24 hours on line service each day, free technical support.
6. Machine has been adjusted before delivery.
7. Our staff can be sent to your company to install or adjust if necessary.
Shandong Anben Machinery Co.,Ltd is a professional Cnc Router manufacturer in China. Our main products include ATC CNC Router, Wood cnc router, stone cnc router, Metal Cnc Router, EPS CNC Router , 4 Axis CNC Router, 5 Axis CNC Router, Plasma Cutting Machine, Engraving Machine and so on. Our products have passed the CE, SGS, ISO9001 etc. Our cnc routers are widely used for advertising, woodworking, mould, stone, metal industry.
We have our own factory and R & D team. Factory covers an area of about 5,000 square meters, specializing in the production of various types of special-shaped machine.
