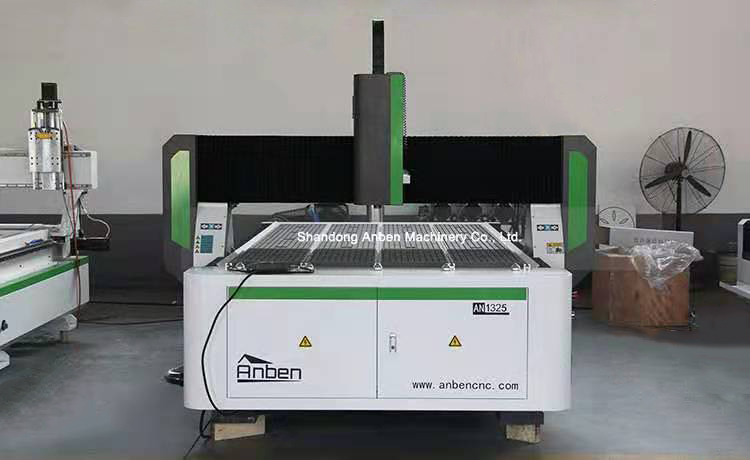

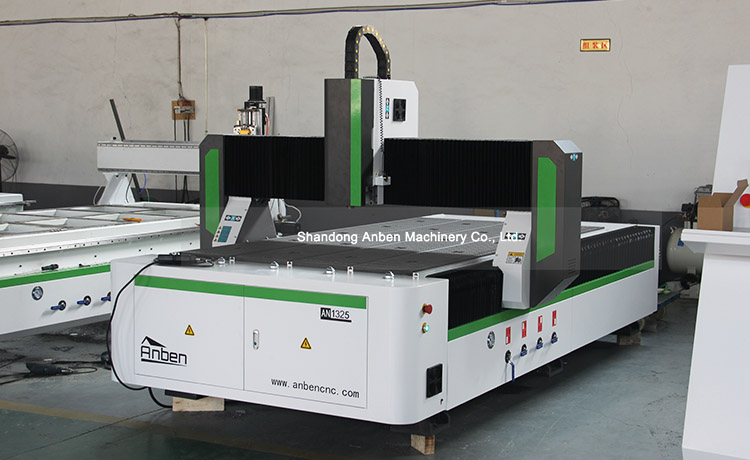

Brass Engraving Machine CNC Milling Mach3 Wood Cutting Machine
Product Description
China Water cooling spindle 24000rpm & Italy HSD air cooling spindle 18000rpm for option.
Dust-proof at X axis to protect the helical rack & gear, linear guide and sliding block.
Spindle protection, protecting the operator
product details
| Brass Engraving Machine CNC Milling Mach3 Wood Cutting Machine | ||||
| Model | AN1325 | AN1530 | AN2030 | AN-Customize |
| Working area(X*Y*Z) | 1300*2500*200mm | 1500*3000*200mm | 2000*3000*200mm | Customize |
| Table Surface | T-slot Table / Vacuum & T-slot Table | |||
| Frame | Heavy-duty Industrial class square tube strong structure | |||
| X, Y Structure | Rack and Pinion Drive, Taiwan PMI linear guide rails | |||
| Z Structure | Taiwan TBI Ball Screw | |||
| Spindle Power | 3KW / 4.5KW / 5.5KW / 6KW / 7.5KW / 9KW-ATC | |||
| VFD Power | 3.7KW / 5.5KW / 7.5KW / 11KW | |||
| Operating System | DSP control system / Nc Studio control system | |||
| Drive Motors | Leadshine drive and FL118 stepper motors | |||
| Max. Rapid Travel Rate | 33000mm/min | |||
| Max. Working Speed | 23000mm/min | |||
| Cutting accuracy | ±0.03/1000mm | |||
| Working Voltage | AC380V, 50Hz, 3PH (Option: 220V) | |||
| Command Language | G Code | |||
| Software Compatibility | Artcam / Power mill / Type 3 / Ucancam | |||
Application of Cnc Router Machine:
1.Mould: wood,wax, wood, gypsum,foams,wax
2. Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.
3. The wood products: voice box, game cabinets, computer tables, sewing machines table,instruments.
4.Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti bate board, epoxy resin, ABS, PP, PE and other carbon mixed compounds.
5. Decorate industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic and soft metals such as copper engraving and milling process.
Standard Package: 1. Inner package: Covered with plastic film on the cnc machine.
2. Outside package: Standard marine export plywood case.
We can package according to your requests.
Delivery Detail: Shipped within 12 working days after payment.
1.24 months quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.
2. Lifetime maintenance free of charge.
3. Free training course at our plant.
4. We will provide the consumable parts at an agency price when you need replacement.
5. 24 hours on line service each day, free technical support.
6. Machine has been adjusted before delivery.
7. Our staff can be sent to your company to install or adjust if necessary.
Q1: How can I get the best machine?
You can tell us your working material, detail work by picture or video so that we can judge whether our machine can meet your need or not. Then we will recommend the most suitable model depends on our experience.
Q2: This is the first time I use this kind of machine, is it easy to operate?
Yes, We will send you manual and guide video in English, it can teach you how to operate the machine. We can offer support by phone, email and skype.
Q3: Do you have any manual of your machine ?
Yes , We will send the English manual of Machine, Controller and the Design software together with the machine.
Q4: If the machine has problem in my place, how could I do?
We could send free parts to you in warranty period if machines have any problem under normal use.
Q5: This model is not suitable for me, do you have more models available?
Yes, we can supply many models. such as Advertising CNC Router, Metal Cnc Router, Wood cnc router, stone cnc router and so on.
Q6: Can you arrange the shipment?
Yes, we can , we can send the machine to your nearest port , we will arrange everything for you , and lead you step by step.
Q7:How should I pay for my order ?
We accept TT, Western Union, LC, Paypal. etc
Q8:How about your service after sales ?
We offer the service from you got the machine, including how to install the machine, how to operate machine.etc. Our engineer has many years of experience of cnc machine service. So don't worry about that.
