GoodCut multi head 1325 wood carvign cnc router machine with 5.5kw water cooled spindle motor for woodworking
Product Description
GoodCut multi head 1325 wood carvign Cnc Router Machine with 5.5kw water cooled spindle motor for woodworking
Specification:
| Model | GC1325-H3 |
| Frame | Heavy welded Steel Struture |
| Spindle | 3.2kw/4.5kw/5.5kw/6kw Air or Water Cooling Spindle |
| Spindle Speed | Adjustable 0-24,000rpm |
| Inverter | FULING |
| Command | G code |
| X,Y.Z Working Area | 1300*2500*200mm |
| X,Y.Z Re-positioning Accuracy | <0.03mm |
| Table Size | 1340*3640mm |
| Table Surface | Double vacuum adsorbed table |
| Working Voltage | AC380V/50/60Hz,3PH (Option: 220V) |
| Drive Motors | Leadshine Hybrid (or YASKAWA servo motor) |
| Software Compatibility | Type3/Artcam/Powermill |
| Dust collector | 3.0kw vacuum cleaner |
| Vacuum pump | 7.5kw water-cooled vacuum pump |
| X, Y Structure | Rack and Pinion Drive, Taiwan CSK linear guide |
| Z Structure | Taiwan Hinwin linear guide |
| Max. Rapid Travel Rate | 50000mm/min |
| Max. Working Speed | 25000mm/min |
Advantages:
- Four air cooled spindle (HQD or Italy HSD spindle optional ),high quality and 24h continuously work.
- HIWIN square rail,good occlusion and rigidity,no distortion for long time use.
- High speed gear rack transmission for XY axis, and high precision ball screw transmission for Z axis,ensuring high speed and high precision at same time.
- Pneumatic ATC for 4 spindles with different tools.Automatic tool changing saves time to manually change tools.
- Vacuum table with vacuum pump,can quickly and stably fix materials on the table for engraving,saving time and long service life.
- Adopting the international asvanced technology of vacuum adsorption mesa, equipped with the strongly vacuum pump, the six zones design can adsorb the different area of the material strongly.
- Well compatibility: CAD/CAM designing software e.g. Type 3/ Artcam/ Castmate/ Wentai etc Cnc Router wood Applicable Materials Hard solid Wood, acrylic, cabinet, Furniture, PVC, density boards, , Acrylic, plastics and soft metal sheets such as copper and aluminum.
Main parts display
Vacuum working table , can be option

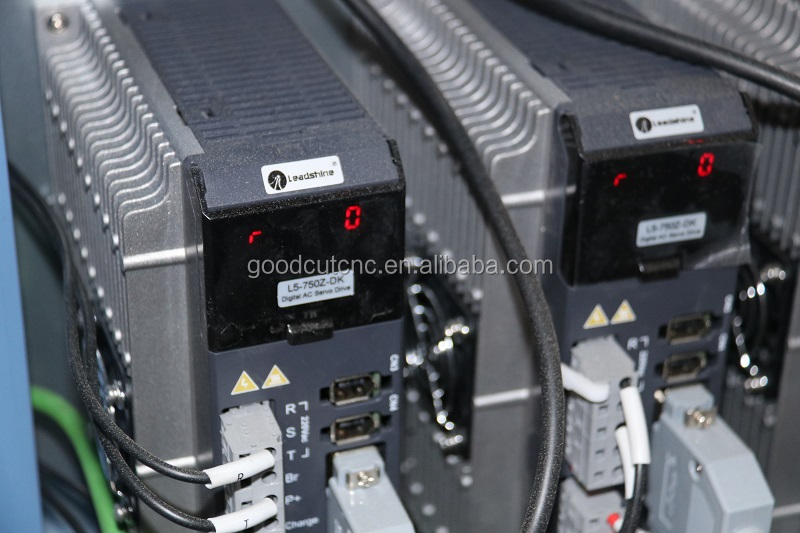

Leadshine 750w driver, can be option
Water cooling spindle
WoodFurniture Industry:
Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates,cupboarddoors, interior doors, sofa legs, headboards and so on.
Die Industry:
Jinan GoodCut CNC Machinery Co.,Ltd.
GoodCut has Purchasing department, The design department, The production department, Quality inspection department, packaging and transportation department, The sales department, After sales service department.
We can offer highest quality machine, and competitive price.
Jinan GoodCut CNC Machinery Co., Ltd.
The meaning of “GoodCut” brand: Good Quality, Good Price, Good Service
Good Quality
1. 15 engineers with more than 10 years rich working experience, manufacture high precision machines;
2. Three-day 72-hour testing machine inspection, after confirming that the machine has no quality problems, then it will be shipped;
3. 4 QC staffs do strict evaluations on in-coming inspections, in-process inspections and final inspections.
Good Price
1. GoodCut manufactures about 50 sets of machines per month, with a large sales volume. We have long-term cooperation with parts suppliers, can get advantageous prices of parts, so that the price of machine is very competitive;
2. GoodCut aims to develop long-term cooperation with new and regular customers, and to give customers the best prices with the most sincere attitude.
Good Service
1. English manual and video for machine using and maintaining, explaining the operation steps in detail;
2. Professional after-sales service staffs, providing 24-hour online service;
3. Provide free technical training and factory field operation teaching to eliminate customer worries.
