Flexible Warm Regula Warm Edge Strips Spacer Bar

  • Flexible Warm Regula Warm Edge Strips Spacer Bar
  • Flexible Warm Regula Warm Edge Strips Spacer Bar
  • Flexible Warm Regula Warm Edge Strips Spacer Bar

Flexible Warm Regula Warm Edge Strips Spacer Bar

    Packaging: Wooden Cases Package and Container Transfer
    Transportation: Ocean
    Supply Ability: 15000 Meter Per Month
    Port: Qingdao Port

Product Description

Flexible Warm Regula Warm Edge Strips Spacer Bar for Insulating Glass Hollow Glazing Double Glasing Processing

Product Description
Warm Edge Spacer with Butyl Sealant for Insulating Glass Processing
1. It’s a new multi-aluminum sealing spacer which composed of aluminum strip, plastic heat insulation strip and aluminum foil, the tensile strength is greatly improved, use one product to do the whole job instead of several components, such as aluminum spacer bar, molecular sieve and so on, so the production speed is fast and saves much cost. 2. Polymer adhesives and tackifiers ensure perfect sealing performance. 3. The unique formula makes the properties of the sealing spacer not change according to temperature and humidity. 4. The high percentage of desiccant within the product completely absorbs the moisture in the air between the glasses, and its strong drying capability ensures that there will be no condensation between insulated glasses even at -60℃. 5. Vacuum-packed with aluminum foil, with indicator card is available inside. The products are packed with composite vacuum foil in four layers, and the indicator card shows the moisture-absorption performance.
Advantages & Features














Benefits & Advantages

Use Manufacturing building doors and windows,Train,Bus,insulating glass ,insulating door, shutter,Refrigeration equipment and so on. Using method and attention All the glass should be dry and clean. The insulating glass should be made by the following steps. 1. Putting the spacer onto the corner of one glass, then making the spacer straight, at the same time keeping the spacer around the surface of the glass, at the end, reserved 2.5mm– 3.0mm to the edge of the glass and the spacer should be reserved about 20mm more joint the pact pressing the joint, making no space in the circle. 2. Then putting another glass onto the one which has the spacer above, making sure the two pieces of glass are mutual alignment in both vertical and horizonal. 3. Putting them into the hot press machine with the temperature between 110–140Š inside and 50~60Šthe outlet. 4. According to the structure requirement of the insulating glass, two component silicone sealant could be putting outside of the spacer. Then a piece of insulating glass should come out. 5. The butyl spacer must be carried out in accordance with this attention otherwise may cause the seal leakage.
Main Technical Parameter


Technical Requirements

Technical Requirements for Insulated Glasss Aluminum Spacer Bar Products: 1. Wall thickness: The single-sided wall thickness is guaranteed to be between 0.20~0.35mm, and the peripheral wall thickness limit deviation is ±0.025mm. 2. Curvature: Hard bends and side bends are not allowed in the product (except for free drooping bending arcs). 3. Appearance: The surface is flat and smooth, without bumps, and even pores. Product packaging, labeling, transportation, storage: 1. Packaging: There are two types: carton packaging and woven tape packaging. The unit package weighs 20±0.05kg (woven tape packaging), 25±0.05kg (carton packaging), and requires neat appearance, straightness, no twisting, and no exposure. 2. Marking: The product name, weight, production date, unit name, address, conformity mark, etc. are clearly marked on the package. 3. Transportation: This product is non-dangerous and can be transported by cars, trains, airplanes, etc. 4. Storage: It should be stored in a dry place. Hebei high-quality insulating glass aluminum strip wholesale The aluminum frame for insulating glass (hollow aluminum strip) is an aluminum product made of high-purity aluminum. After dozens of processes, the surface is smooth and smooth, does not oxidize, does not corrode, does not have any effect on the desiccant, and effectively eliminates it Atomization is a new type of environmentally friendly building materials products.
size (mm)
width (mm)
thickness (mm)
m/carton
weight/ carton
B ±
A ±
m +
kg ±
6
8.0 ±0.1
6.5 ±0.1
800 +0.5
60.50 ±1.5
7
9.0 ±0.1
6.5 ±0.1
760 +0.5
62.10 ±1.5
8
10.0 ±0.1
6.5 ±0.1
700 +0.5
62.40 ±1.5
9
11.0 ±0.1
6.5 ±0.1
670 +0.5
63.20 ±1.5
10
12.0 ±0.1
6.7 ±0.1
630 +0.5
62.50 ±1.5
11
13.0 ±0.1
6.7 ±0.1
600 +0.5
66.50 ±1.5
12
14.0 ±0.1
6.7 ±0.1
550 +0.5
64.30 ±1.5
13
15.0 ±0.1
7.0 ±0.1
520 +0.5
64.30 ±1.5
14
16.0 ±0.1
7.0 ±0.1
500 +0.5
65.50 +1.5
15
17.0 ±0.1
7.0 ±0.1
440 +0.5
62.20 ±1.5
16
18.0 ±0.1
7.0 ±0.1
430 +0.5
63.80 ±1.5


Material name
Material
Producing Area
Composition
Weight/ Carton
Inner sealant
Butyl rubber
China
butyl sealant. Calcium powder、polyisobutylene
kg ±
External sealant
Polymer adhesive
Germany
BASF polyisobutylene、butyl sealant、 Calcium
60.50 ±1.5
Aluninum strip
3003 aluminum alloy
China
AL-Mn
62.10 ±1.5
Aluminum foil film
Aluninum foil film
China
Aluainum foil membrane
62.40 ±1.5
Molecular seive
3A nolecular sieve
China
2/3K20•1/3Na20 •Al203 •2Si02 •9/2H20
63.20 ±1.5
heat-insulating film
PVC
China
PVC
62.50 ±1.5

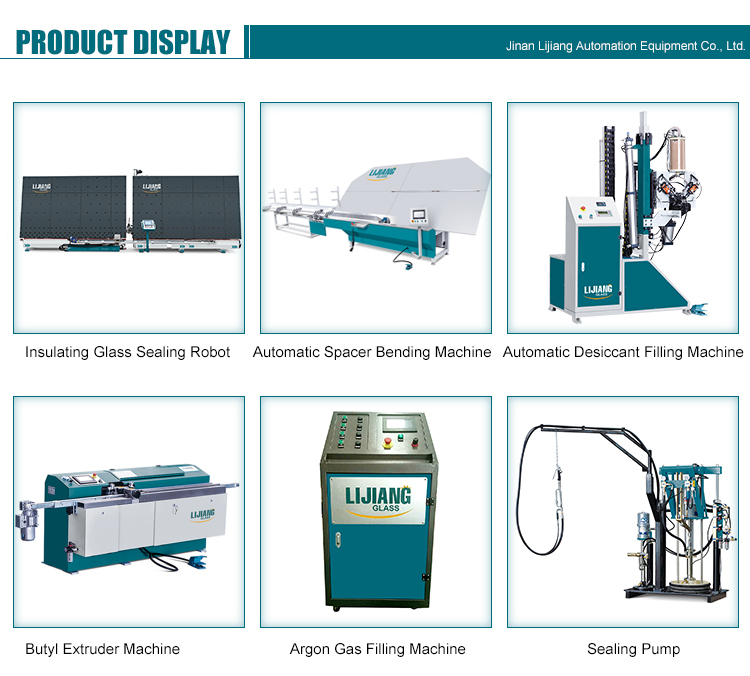

Other Products:
