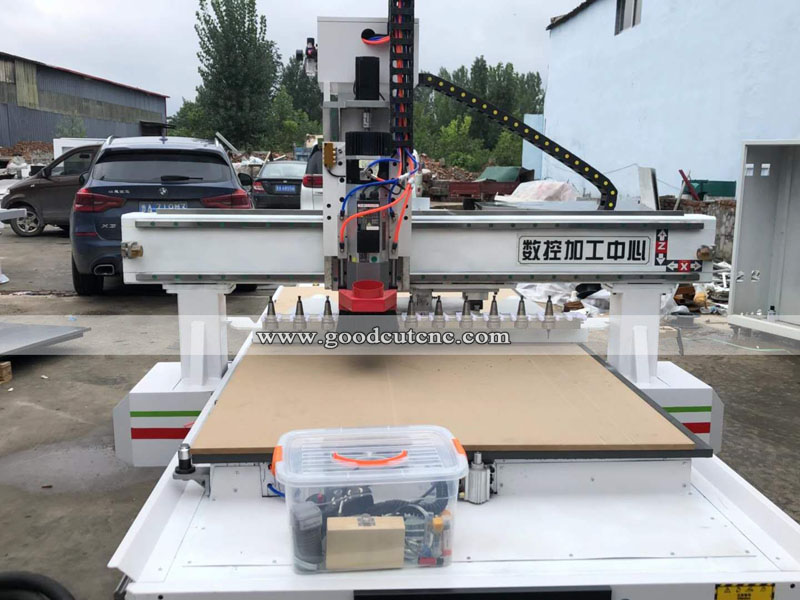

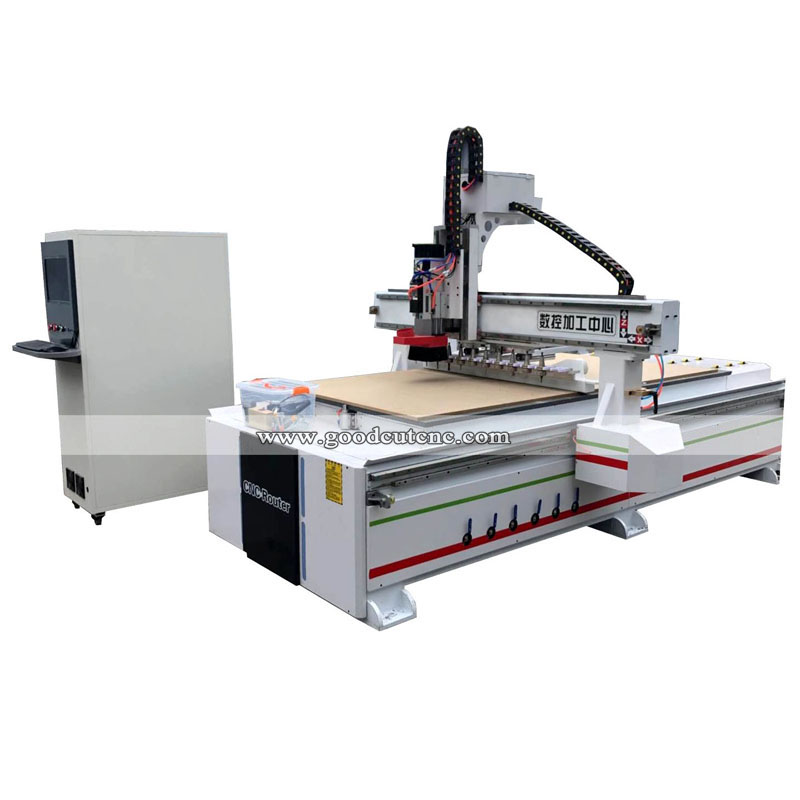

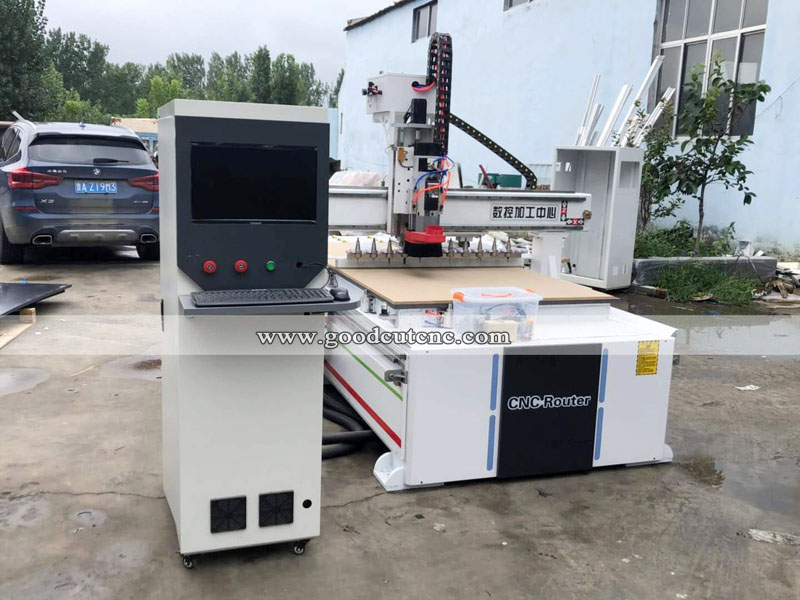

Jinan 1325 linear atc cnc router machine for mdf wooden furniture
Product Description

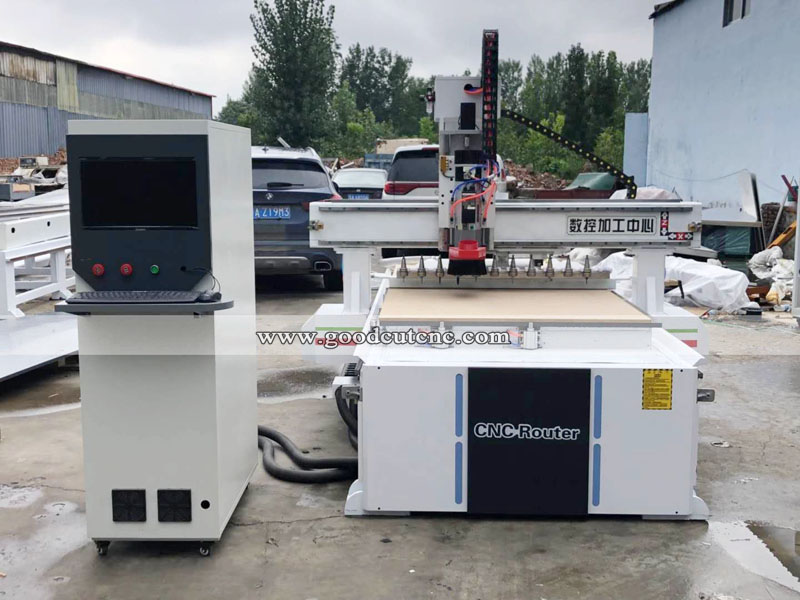

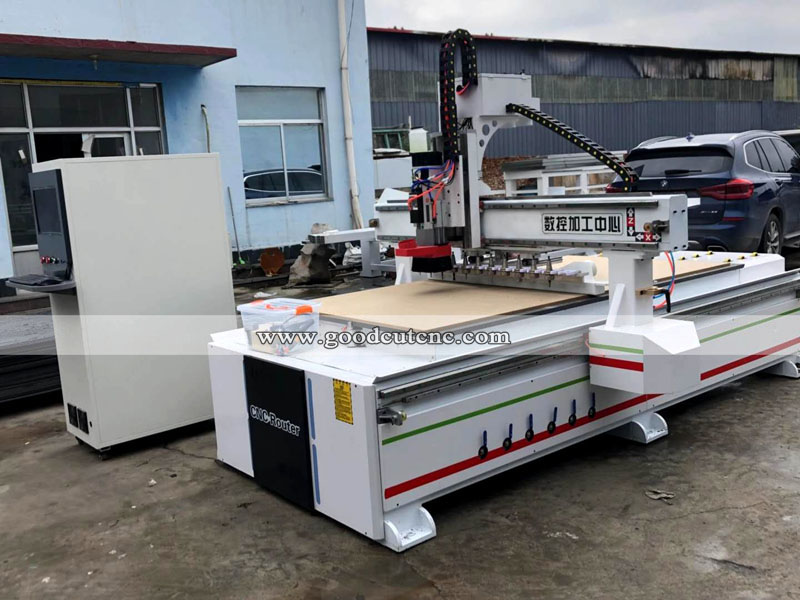

Jinan 1325 linear ATC Cnc Router Machine for mdf wooden furniture
Product Description
Feature of Jinan 1325 linear ATC CNC Router machine for mdf wooden furniture:
1. It adopts HQD 9kw air cooling spindle, no need water pump, it is very convenient to use.
2. with high-performance Leadshine 750W servo motor and driver, the machine can work in high precision, and it has a strong ability of overload.
3. The linear automatic tool changer system which contains 12 pieces cutting tools controlled by Taiwan BaoYuan Control system.The tools can be changed very quickly and reliably.
4. Break point memory, continuing carving after power outage, forecasting processing time and other functions.
5. It is compatible with Type3 / Artcam and other CAD / CAM design software.
Detailed Images
Popular and easy operation, with USB port to transfer program.

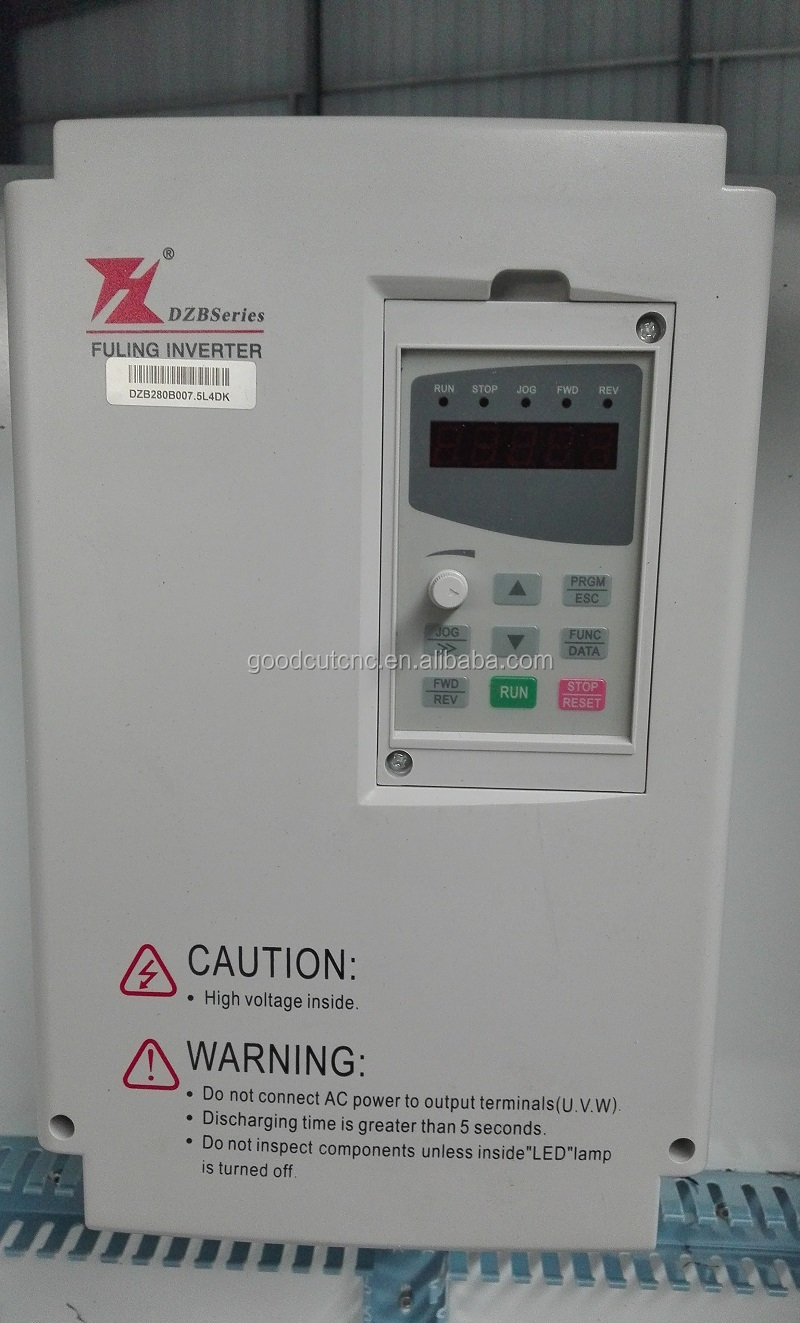

Guarantee the variety working speed and protect the spindle very well.

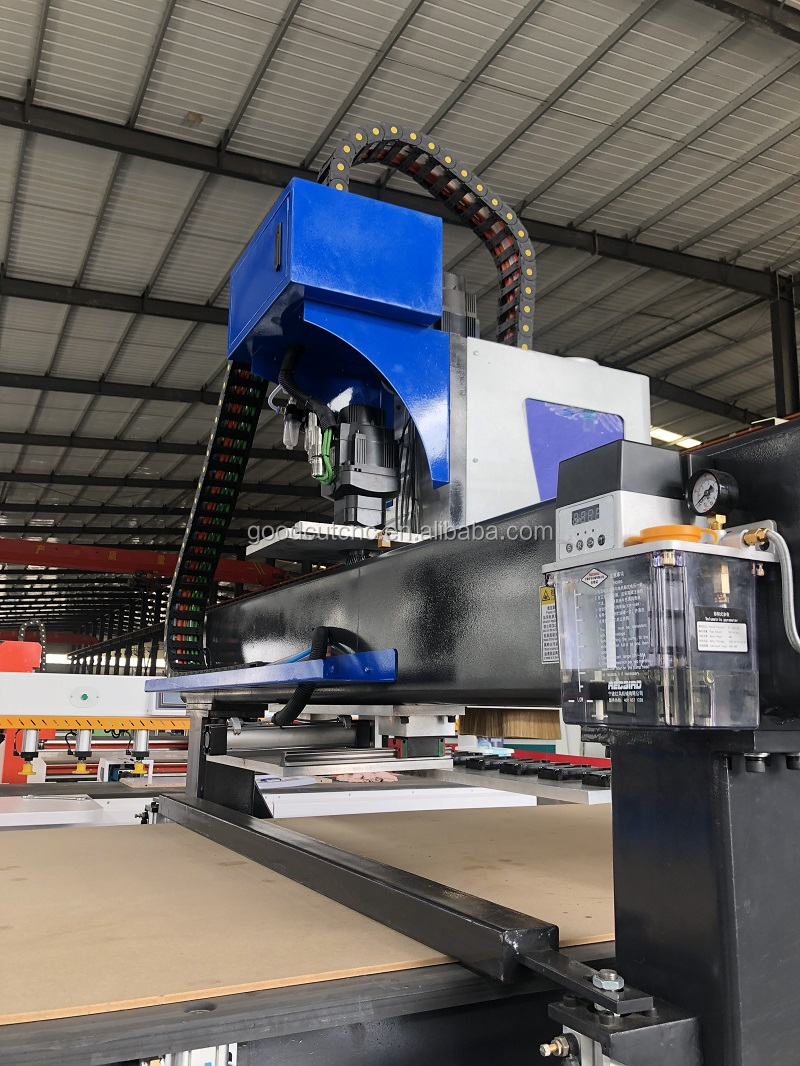

linear motion with high precision and and in high speed
Guaranteed genuine rail with good quality,realizing smooth movement.

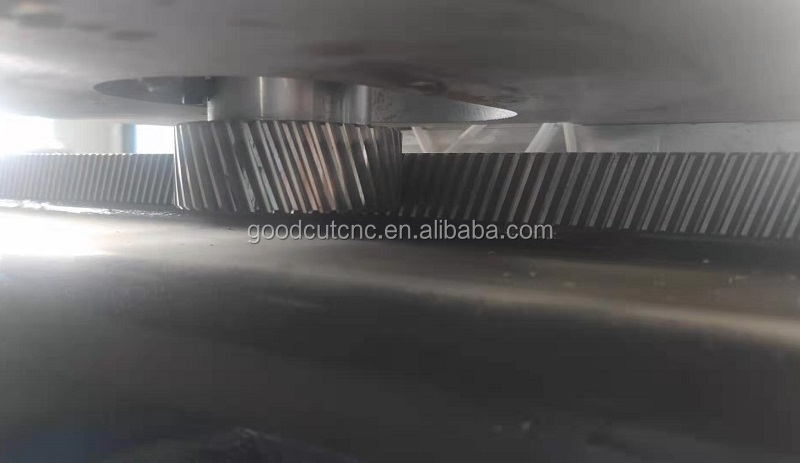

quiet running, greater accuracy, smoother cutting and allows greater accelaration and feeding rates,
longer lifetime because of smaller wearing force.
longer lifetime because of smaller wearing force.
Product Paramenters
Working Area: | 1300*2500*250mm |
Spindle Power: | China HQD 9.0kw air cooling spindle |
Spindle Rotating Speed: | 0-24000rpm |
Control System: | Taiwan BaoYuan control system |
Power Supply: | AC380/220v±10, 50 HZ |
Worktable: | Vacuum Table and T-slot |
Driving Syestm: | Leadshine 750w servo motors and drivers |
Transmission: | X,Y :Gear rack, high accuracy square guide rail, Z: ball screw TBI and hiwin square guide rail |
Locating precision: | ＜0.01mm |
Min Shaping Character: | Character:2x2mm,letter:1x1mm |
Operating Temperature: | 5°C-40°C |
Working Humidity: | 30%-75% |
Working Precision: | ±0.03mm |
System Resolution: | ±0.001mm |
Graphic Format Supported: | G code: *.u00, * mmg, * plt, *.nc |
Compatible Software: | ARTCAM, UCANCAM ,Type3 and other CAD or CAM softwares |
Optional: | ① Italy HSD 9.0kw Air Cooling Spindle② Taiwan Delta / Japan Yaskawa Servo Motor and Driver ③ Weihong NK300/ Taiwan Syntec Control System ④ Water/Air / Oilless Vacuum Pump ⑤CCD Camera / Viberating Knife ⑥C Axia with Aggregates ⑦Drilling Bank for hole |
Advantage of Jinan 1325 linear Atc Cnc Router machine for mdf wooden furniture:
1.Super quality 9KW Air cooling Auto-tool changer spindle.
2.Taiwan HIWIN linear guide rail keep high working precision
3.Famous big power 750w servo motor and driver ensures machine to run with fast speed and low noise.
4.With 12 pieces auto-tool changer and Auto tool sensor.
5.Vacuum table and vortex vacuum pump, and 3.0kw dust collector.
6.Taiwan LNC ATC controlling system, which can change tools alternatively, tool sensor to compensate the tolerance of tool length.
2.Taiwan HIWIN linear guide rail keep high working precision
3.Famous big power 750w servo motor and driver ensures machine to run with fast speed and low noise.
4.With 12 pieces auto-tool changer and Auto tool sensor.
5.Vacuum table and vortex vacuum pump, and 3.0kw dust collector.
6.Taiwan LNC ATC controlling system, which can change tools alternatively, tool sensor to compensate the tolerance of tool length.
Application
1. Furniture industry: solidwood doors, composite doors, cabinet doors, interior doors, sofa legs, headboards, antique furniture and superficial flower-shaped engraving of various plate-type furniture and disposable finishing of process.
5. Musical instrument industry: headstock processing ,guitar semi-finished products processing, surface sculpture and three-dimensional curved surface making of various musical instruments' decorative patterns.
2. Decorated industry: variety of decorations engraving process such as decorative murals, screens, decorative patterns, three-dimensional wave boards, sound-absorbing panels and so on.
3. Advertising industry: engraving and making for acrylic cutting and engraving, acrylic plastic model making, badges and a variety of logo signs.
4. Arts & crafts industry: sculpture making of arts & crafts such as process relief, shadow carving, craft ornaments, car accessories and so on.
5. Musical instrument industry: headstock processing ,guitar semi-finished products processing, surface sculpture and three-dimensional curved surface making of various musical instruments' decorative patterns.
Packing&Shipping

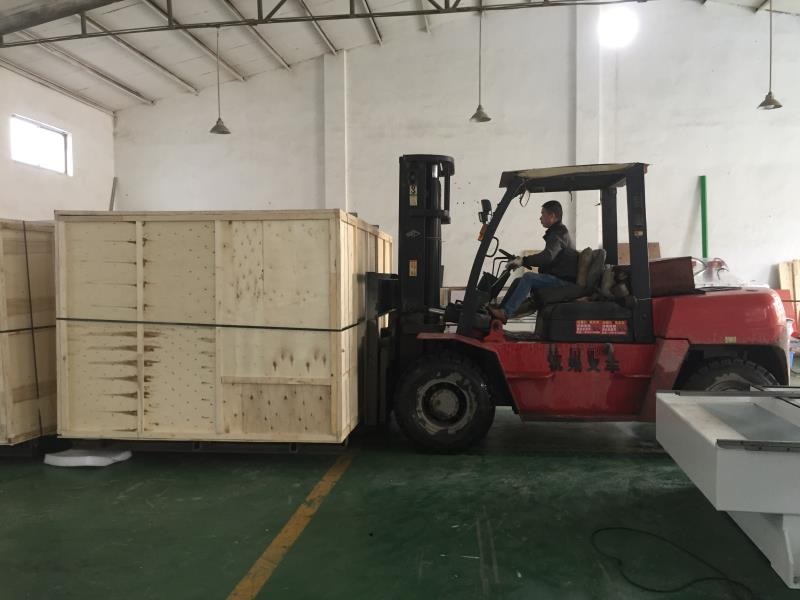

Packaging Details:
1. Outside package: Standard marine export plywood case.
2. Inner package: Three layers in total; EPE pearl cotton film+PE stretchy film.
Improved package, much more strong and environmental protection.
We can also make package according to your requests.
Delivery Detail: Shipped in 25-30 working days after payment.
1. Outside package: Standard marine export plywood case.
2. Inner package: Three layers in total; EPE pearl cotton film+PE stretchy film.
Improved package, much more strong and environmental protection.
We can also make package according to your requests.
Delivery Detail: Shipped in 25-30 working days after payment.
After Sales Service
Guarantee and After-sale service:
1. 12 months warranty for the whole machine.
2. Technical support by phone, email or WhatsApp/Skype around the clock.
3. Friendly English version manual and operation video CD disk.
4. Engineer available to service machinery overseas.
2. Technical support by phone, email or WhatsApp/Skype around the clock.
3. Friendly English version manual and operation video CD disk.
4. Engineer available to service machinery overseas.

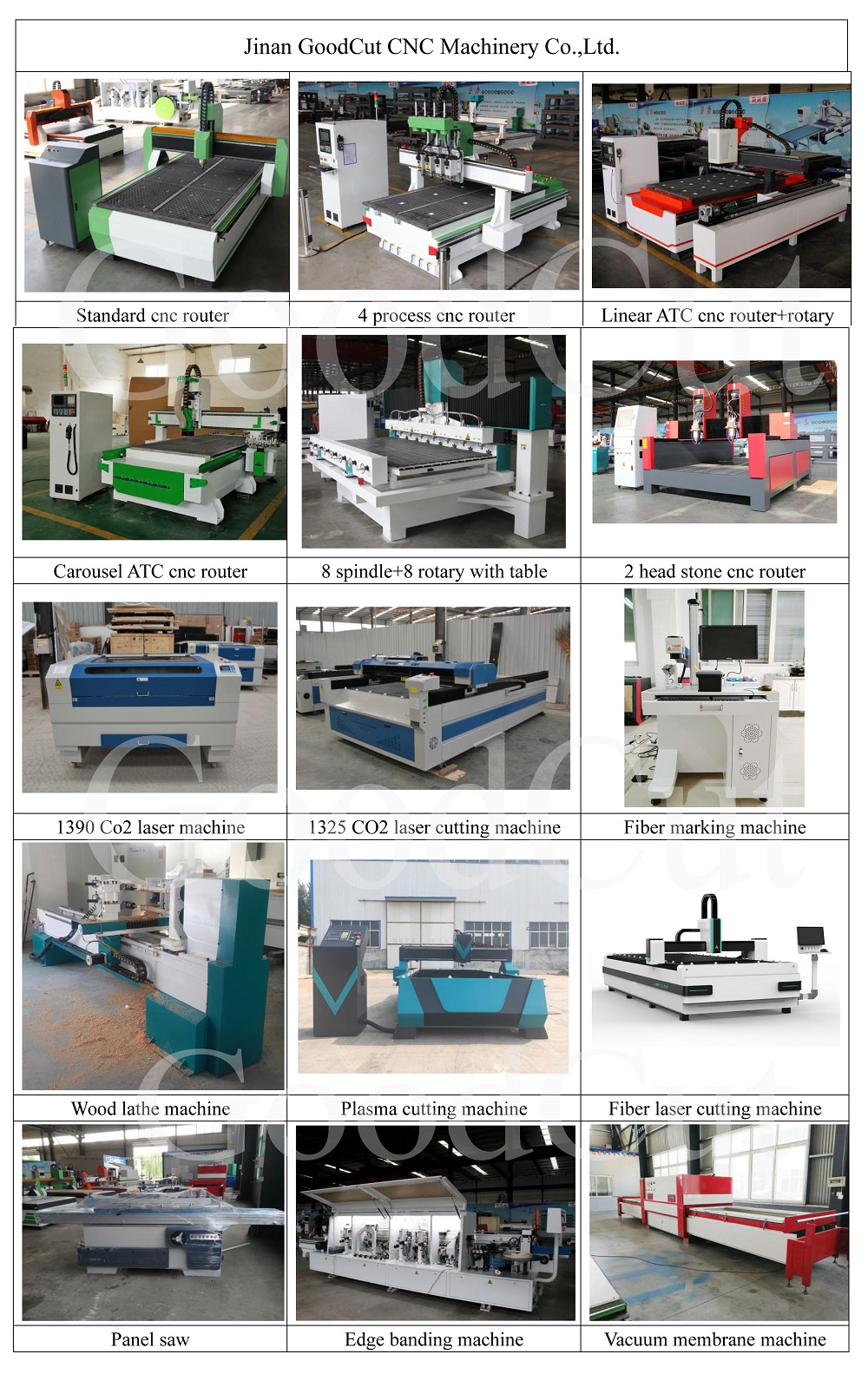

Company Introduction
Jinan GoodCut CNC Machinery Co.,Ltd.
The meaning of “GoodCut” brand: Good Quality, Good Price, Good Service
Good Quality
1. 15 engineers with more than 10 years rich working experience, manufacture high precision machines;
2.Three-day 72-hour testing machine inspection, after confirming that the machine has no quality problems, then it will be shipped;
3. 4 QC staffs do strict evaluations on in-coming inspections, in-process inspectionsandfinal inspections.
Good Price
1. GoodCut manufactures about 50 sets of machines permonth, with a large sales volume. We have long-term cooperation with parts suppliers, can get advantageous pricesof parts, so that the price of machine is very competitive;
2. GoodCutaims to develop long-term cooperation with new and regularcustomers, and to give customers the best prices with the most sincere attitude.
Good Service
1. English manual and videofor machine using and maintaining,explaining the operation steps in detail;
2. Professional after-sales service staffs, providing 24-hour online service;
3. 3. Provide free technical training and factory field operation teaching
1. 15 engineers with more than 10 years rich working experience, manufacture high precision machines;
2.Three-day 72-hour testing machine inspection, after confirming that the machine has no quality problems, then it will be shipped;
3. 4 QC staffs do strict evaluations on in-coming inspections, in-process inspectionsandfinal inspections.
Good Price
1. GoodCut manufactures about 50 sets of machines permonth, with a large sales volume. We have long-term cooperation with parts suppliers, can get advantageous pricesof parts, so that the price of machine is very competitive;
2. GoodCutaims to develop long-term cooperation with new and regularcustomers, and to give customers the best prices with the most sincere attitude.
Good Service
1. English manual and videofor machine using and maintaining,explaining the operation steps in detail;
2. Professional after-sales service staffs, providing 24-hour online service;
3. 3. Provide free technical training and factory field operation teaching
Contact Me
Candy Guan
Jinan GoodCut CNC Machinery Co.,Ltd.
Wechat/Whatsapp: 008613170811607
Email/Skype: candyguan AT goodcutcnc.com
Website: www.goodcutcnc.com
