Heavy and high speed 3d sculpture engraving stone cnc router machine price
Product Description
Heavy and high speed 3d sculpture engraving Stone Cnc Router Machine price
Features of Heavy and high speed 3d sculpture engraving stone Cnc Router Machine price:
1. Adopt Taiwan HIWIN Square rails, double-row four columns slide block, high precision, huge bearing
capacity, good moving stability and tools falling accuracy.
2. Whole mahine welded with thickness steel tubes, not easy to be deformed. working table
backed with steel plate, bearing capacity more than 1ton
3.5.5kw water cooling spindle , big cutting intensity and high efficiency
4. Dust proof and wate pcroof design protects the transmission components
5. Equipped with water tank and automatic water cooling system
Parameters of Heavy and high speed 3d sculpture engraving stone cnc router machine price:
| Model | 1325 |
| Machine body | Thicken heavy duty body |
| Working area(XYZ axis) | 1300*2500*200mm |
| X Y Z rail | HIWIN linear square guide rail |
| X Y Z transmission | High precision ball screw |
| Spindle | 5.5kw water cooling spindle |
| Spindle speed | 24000rpm |
| Inverter | 4.5KW inverter |
| Motor | Stepper motor |
| Driver | Stepper driver |
| Transformer | Yes |
| Lubrication | Yes |
| Max. speed | 8m/min |
| Max. working speed | 4m/min |
| Voltage | AC 380V 50HZ |
| Collects | ER20 3.175-12.7mm |
| Repeat reposition accuracy | 0.01mm |
| Cover | X Y Z cover |
| Command | G Code |
| Software | Artcam/ Ucancam |
| Control system | NC-Studio |
| Different configuraiton | Optional driving mode: |
| Servo motor and driver | |
| Optional control system: | |
| DSP controller |
parts display
Heavy duty thicker and bigger welded steel tube frame--more stronger
5.5kw water cooling spindle with water tank
Dust-proof and waterproof design protects the transmission components.
All surroundings of Stone CNC Router is with stainless steel cover to avoid machine be dusted after long time operation, also All axis use dust proof cover to protect guide rail from water
Lubrication oil system
Stepper motor and driver
Tool box
Aplication of Heavy and high speed 3d sculpture engraving stone Cnc Router machine price:

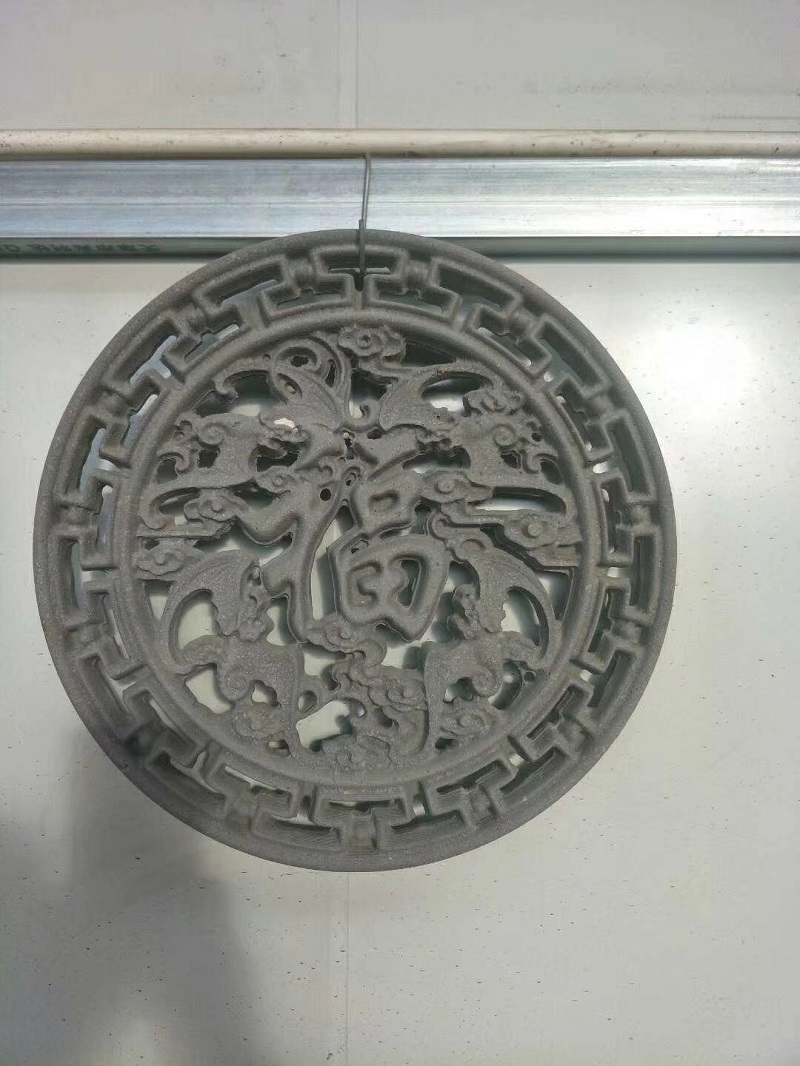

3D relief ,linear engraving and cutting Of natural marble,bowlder ,granite,artifical stone,tombstone,milestone,
tiles,glass etc.Two-dimensional chamfering and drilling.
Package Detail: 1.Outside package:Standard plywood package.
2.Inner package:Stretchy film and plastic film for humidity.
And we can package according to your requests.
Delivery Detail: For atandard machines,it will be 7-15 working days after payment;For non-standard machines and customized machines according to clients' specific requirements,it will be 15 to 30 working days after payment.
Technical Support
1. 24 months quality guaranty for the machine main parts, excluding the consumables, such as water pump,
air pump, exhaust fan, etc. shall be changed free of charge when if any problem during the warranty period.
2. Lifetime maintenance free of charge.
3. Free training course at our plant.
4. Manual of video with machine teach the client how to setup, test, align laser, operate and maintain, also supply the specifications setting for speed and power to engrave or cut on various material.
5. Life long tech support by email and web camera.
Warranty
2 years for laser machine
10 months for laser tube
Delivery Time
1. for small machine, our standard model, generally 7-10 working days
2. for big machine , our standard model, generally 10-15 working days
Payment Terms
100% T/T, 30% as deposit, the balance before delivery
