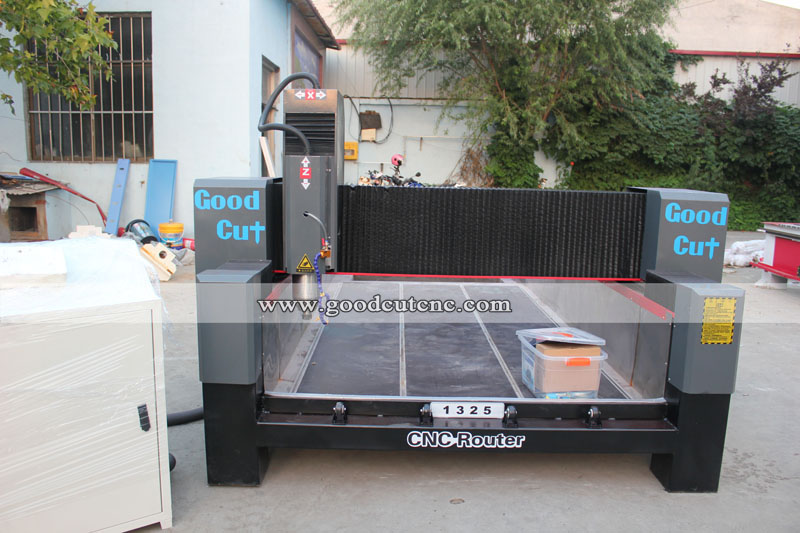

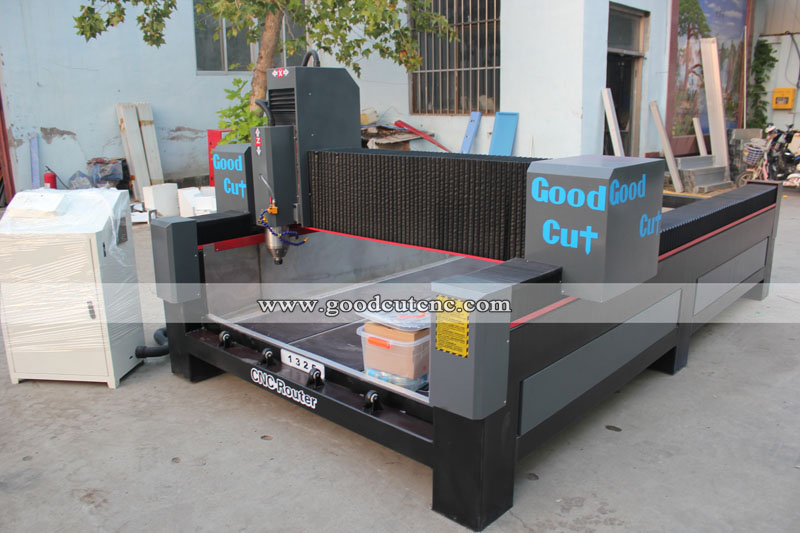

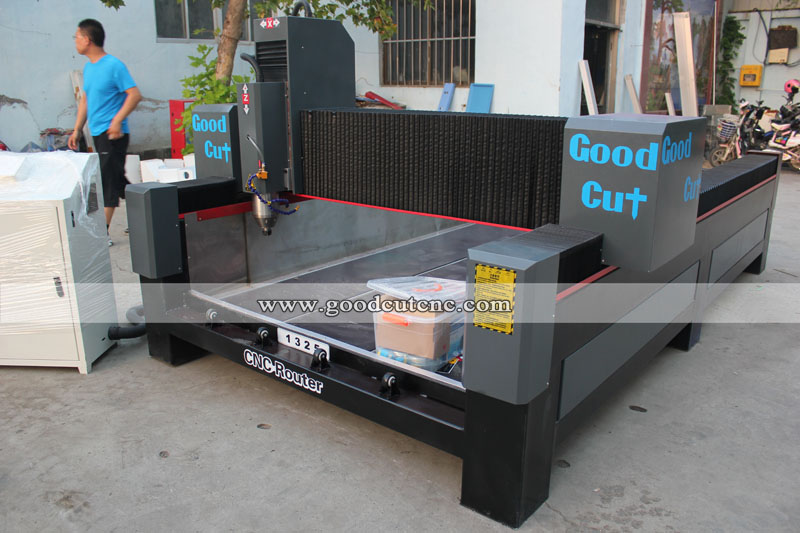

High precision 1325 4 axis cnc stone router machine with bits for granite engraving

  • High precision 1325 4 axis cnc stone router machine with bits for granite engraving
  • High precision 1325 4 axis cnc stone router machine with bits for granite engraving
  • High precision 1325 4 axis cnc stone router machine with bits for granite engraving
  • High precision 1325 4 axis cnc stone router machine with bits for granite engraving
  • High precision 1325 4 axis cnc stone router machine with bits for granite engraving
  • High precision 1325 4 axis cnc stone router machine with bits for granite engraving
High precision 1325 4 axis cnc stone router machine with bits for granite engraving

High precision 1325 4 axis cnc stone router machine with bits for granite engraving

Product Description

High precision 1325 4 axis cnc stone router machine with bits for granite engraving
Product Description
Feature:

★ T type heavy duty Machine structure, good weight bearing capacity, not easy to deformation, the special machine bed design, can bearing more than 2000kgs materials.

★ The special designed Z axis, can increase the stone relief accuracy, can solve the Zaxis belt or ball screw breaking problem thoroughly.

★ The water proof and dust proof system for X Y Zaxis, can protect All the parts, reduce the machine fault, enlarge the life time.

★ High-performance driven motor to ensure that the machines high speed and accuracy.

★ Using well-known domestic brands of water-cooled brushless spindle, low noise, strong cutting ability, to ensure the long time working.

★ Automatic tool calibration easy and accurate "Z" zero position for single and multiple tool changes

★ Easy to use Mach 3 controller works with all industry standard CAD/CAM software

★ High grade HIWIN square rail

★ XY axis German helical rack and pinion

★ Z axis high precision TBI ball screw

★ 900*1500mm, 1300*1800mm, 1300*2500mm, 1500*3000mm,1800*2500mm standard sizes (Special sizes available upon request.)

★ 1 spindle, 2 spindles or 3 spindles available upon request.

Detailed Images

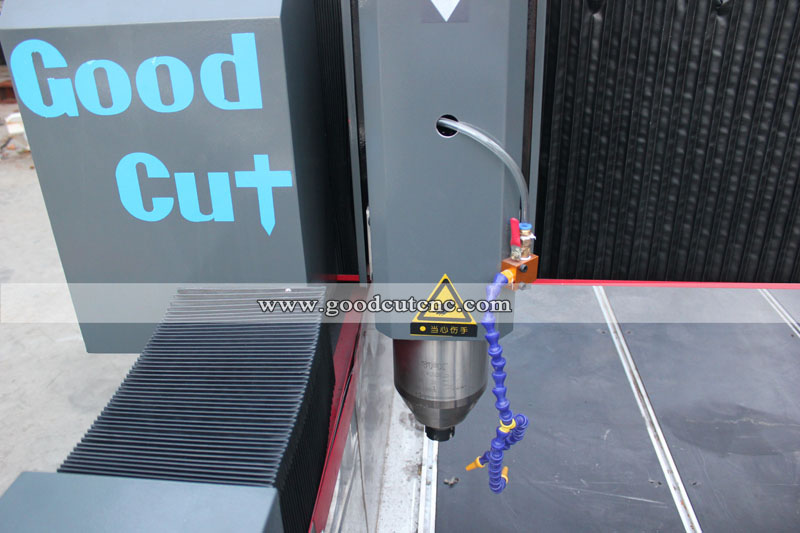

water cooling Spindle (we also can choose air-cooling spindle) with water spray cooling system.

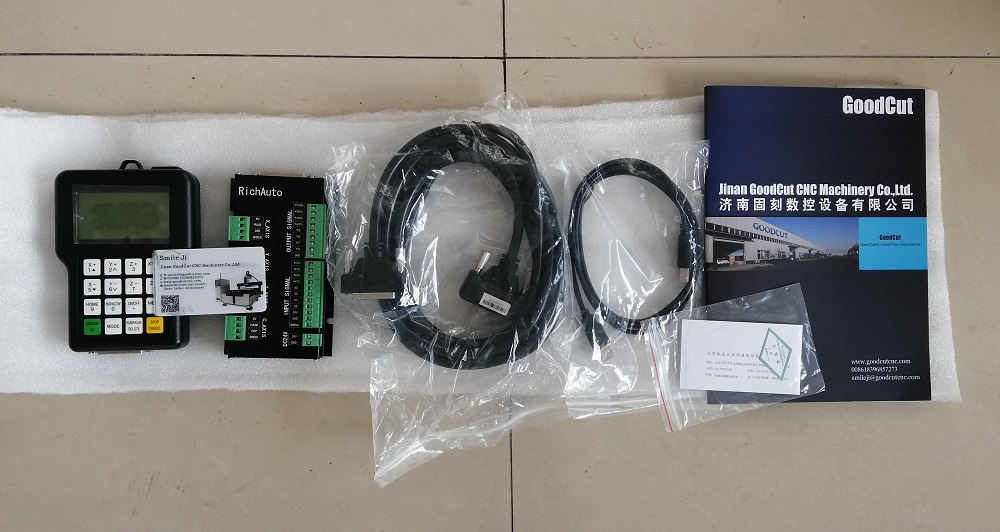

DSP control system, don't need to connect computer, it is easy to learn and operate.

Leadshine stepper motor and driver.(Servo motor for optional)

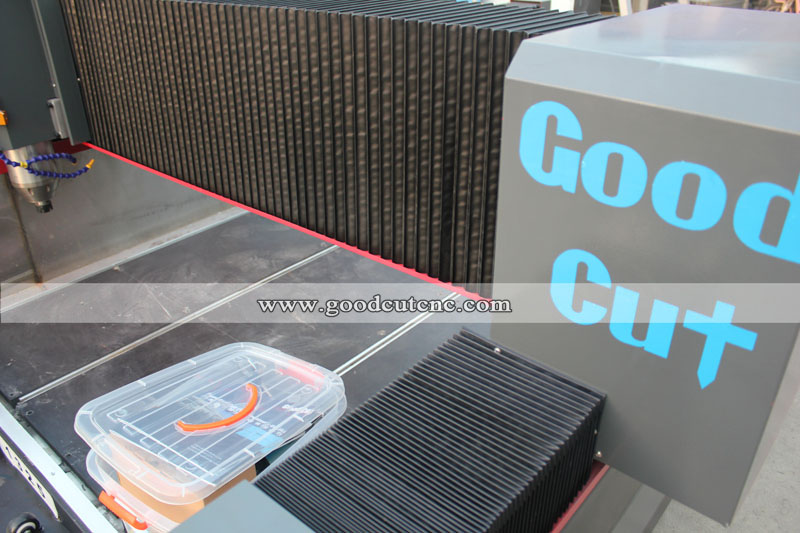

Dust protector and waterproof design ensure stable transmission.

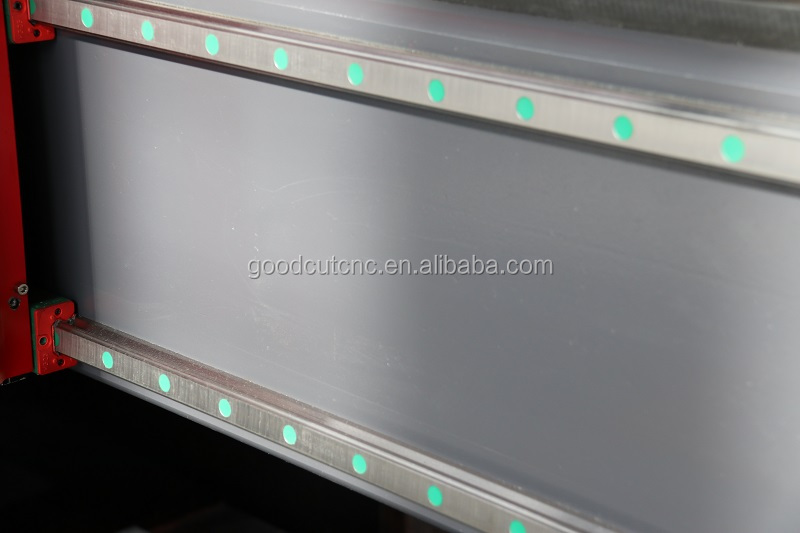

Adopt Taiwan HINWIN linear guide rail. the bearing of the lead guide rail is face to face, the long time use precision is high
Oil lubrication system

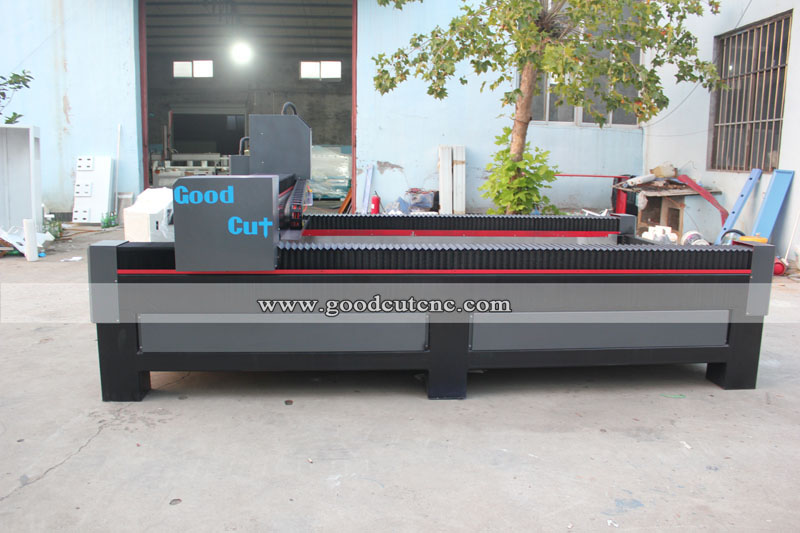

Heavy duty thicker and bigger welded steel tube frame--more stronger
Optional Parts

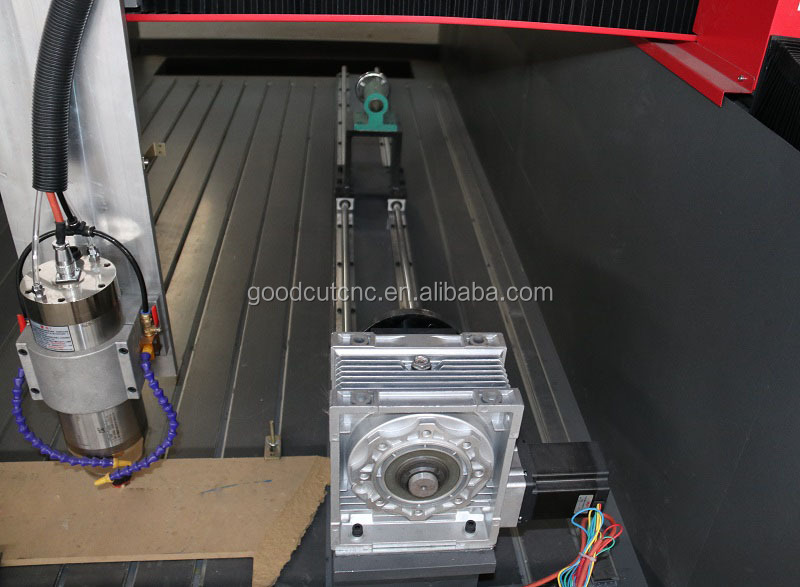

4th axis rotary device.



Double head
Product Paramenters
Product model
GC-1325S
X,Y,Z Working Area
1300x2500x300mm
X,Y,Z Repositioning Accuracy
±0.05mm
Table Surface
T-slot Table
Frame
Welded structure
X, Y axis transmission
Rack and Pinion gear
Z transmission
Ball Screw
Rail Configuration
20 square rail
Max. Traveling Rate
25000mm/min
Max. Working Speed
15000mm/min
Spindle Power
Water cooling 5.5KW(Opitioinal 3.0/4.5/7.5kw) spindle
Spindle Speed
24000RPM
Drive Motors
Stepper System (Optional Yaskawa/ Panasonic Servo)
Working Voltage
AC380V/50Hz/3PH
Command Language
G Code
Operating System
Nc studio System (Optional:DSP)
Computer Interface
USB
Software Compatibility
Type3, UCANCAM
Packing Size
Wooden case
N.W.
1600Kg

1. Lathe bed uses thickwalled square tube structure with good rigidity and strength that can load heavy materials weighting up to one ton.

2. High-power spindle provides large cutting intensity and high efficiency.

3. Tool cooling system ensures effectively processing effect and improves tool life.

4. Water/ Dust proof on three axes makes transmission system clean and rust-proof for good accuracy and longer life.

5. Automatic oiling system can lubricate rails to ensure working accuracy,effectively extending machine' s lifespan.
Application
1. Suitable for natural marble, granite, bluestone, sandstone, artificial stone, tombstone, milestone, ceramic tile, jade, crystal, ceramics, glass, plastic, wood, bamboo, cambered surface, sphere, stainless steel, iron, copper, aluminum, titanium alloy, can doing 3D embossment, and line engraving, beveling, drilling 2D engraving.

2. Such as granite stone can be layered engraving to 3mm.

3. Marble, bluestone can be engraving to 3mm on time.

4. Engraving characters, letters, pattern, intaglio, rilievi, handwriting, ancient calligraphy, abraziune colored drawing, flat carving colored drawing, etc. on stone, glass, depth can control optionally, to reach the artistic effect.
Packing&Shipping
Packing:
1.Outside package: Standard marine export plywood case.
2.Inner package: Three layers in total; EPE pearl cotton film+PE stretchy film.
Improved package, much more strong and environmental protection.
We can also make package according to your requests.

Delivery Detail: Shipped in 20-25 working days after payment.

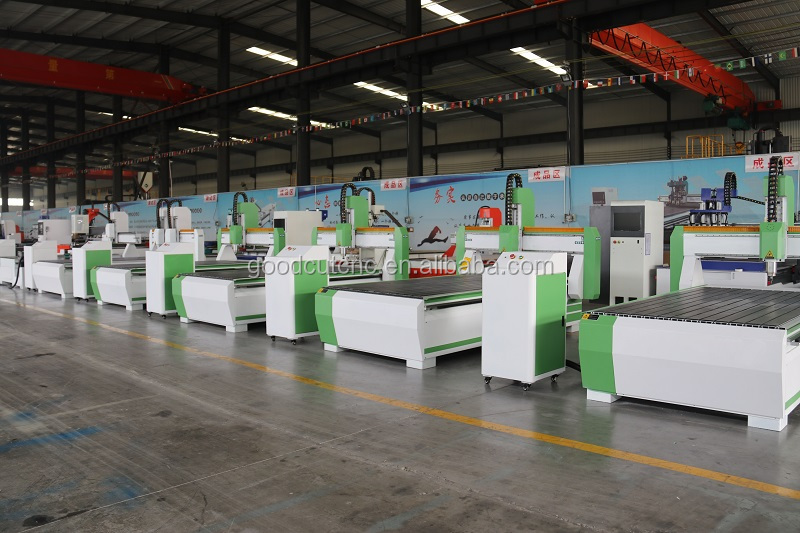

Company Introduction
Jinan GoodCut CNC Machinery Co., Ltd. The meaning of “GoodCut” brand: Good Quality, Good Price, Good Service
Good Quality 1.15 engineers with more than 10 years rich working experience, manufacture high precision machines; 2.Three-day 72-hour testing machine inspection, after confirming that the machine has no quality problems, then it will be shipped; 3. 4 QC staffs do strict evaluations on in-coming inspections, in-process inspections and final inspections. Good Price 1. GoodCut manufactures about 50 sets of machines per month, with a large sales volume. We have long-term cooperation with parts suppliers, can get advantageous prices of parts, so that the price of machine is very competitive; 2. GoodCut aims to develop long-term cooperation with new and regular customers, and to give customers the best prices with the most sincere attitude. Good Service 1. English manual and video for machine using and maintaining, explaining the operation steps in detail; 2. Professional after-sales service staffs, providing 24-hour online service; 3. Provide free technical training and factory field operation teaching to eliminate customer
